AMPGP
STANDARD & CUSTOM
ALUMINUM FRAMED PLEATED
DISPOSABLE AIR FILTERS
FOR HIGH TEMPERATURE · UP TO 500˚
Any Size or Thickness Can Be Manufactured
Submit your Custom Specs!

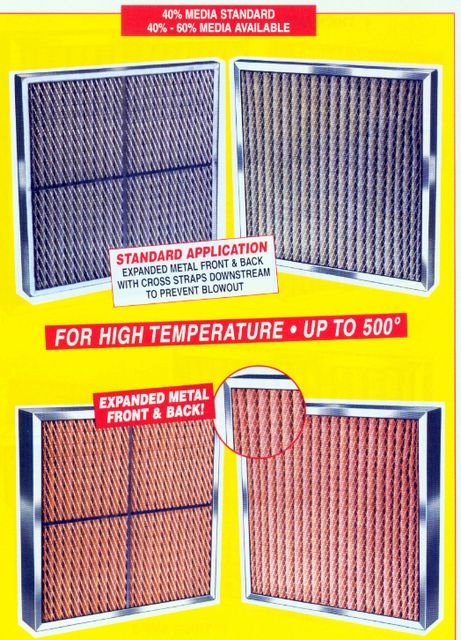

STANDARD APPLICATION Expanded metal front & back with cross straps downstream to prevent blowout!
Front (shown with optional Hi-temp gasket)
40% MEDIA STANDARD 40% - 60% MEDIA AVAILABLE
GENERAL SPECIFICATIONS
SUBJECT TO CHANGE WITHOUT NOTICE
032 Aluminum Frame for high temps
Media encapsulated in between screens
1 pleat per inch standard
Manvilles Corp. glass filtering media
Sealed perimeter to prevent air by-pass
High temperature applications up to 500˚
Optional hi-temp gasket - upstream or downstream (must be specified with order)
AMP
GALVANIZED FRAMED PLEATED
DISPOSABLE AIR FILTER
STANDARD & CUSTOM

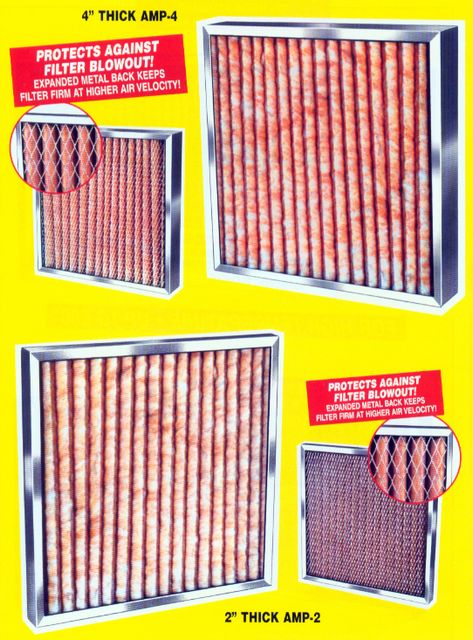

UL Class Available in 1", 2" & 4" Thickness
Expanded metal back keeps filter firm at higher air velocity! PROTECTS AGAINST FILTER BLOWOUT!
AMP
40% MEDIA STANDARD 40% - 60% MEDIA AVAILABLE
U.L. Class 1 rating R4294
Manvilles Corp. glass filtering media
Sealed perimeter to prevent air by-pass
Galvanized expanded metal backing for added support- prevents media blowout at higher air velocity
High temperature applications: up to 320˚
Optional Hi-temp gasket
HOW THE PLEATED FILTER WORKS
Filters operate on a strainer type principle.
Pleats are shaped and spaced on predetermined centers. This spacing causes diffusion of air pressure over the pleated surface.
Least resistance is in bottom of the pleat where pollutants are filtering out (initially). Eventually a constant build-up of pollutants increases the resistance at the bottom of the pleat. Therefore, the flow of air gradually moves up the sidewalls of the pleat as the point becomes loaded.
As dirty air is pulled through the pleated sides, the pollutants themselves function as a supplemental filteration medium throughout the life of the filter.
